Chinon Auto 357z
posted 9-8-03

This camera manual library is for reference and historical purposes, all rights reserved.
This page is copyright by    M. Butkus, NJ.
This page may not be sold or distributed without the expressed permission of the producer
I have no connection with Chinon Co., Japan

On-line camera manual library
This is the full text and images from the manual.

Back to main on-line manual page

If you find this manual useful, how about a donation of $3 to:

M. Butkus, 29 Lake Ave., High Bridge, NJ 08829-1701
and send your e-mail address so I can thank you.
Most other places would charge you $7.50 for a electronic copy
or $18.00 for a hard to read Xerox copy.


This will help me to continue to host this site, buy new manuals, and pay their shipping costs.
It'll make you feel better, won't it?

If you use Pay Pal, use the link below. Use the above address for a check, M.O. or cash.


Click here for PDF version - Better printing



TABLE OF CONTENTS

Nomenclature  1

Specifications  3

SIMPLIFIED GUIDE FOR BASIC OPERATION 4

1. Battery Installation 6

2. Automatic Film Speed Setting 7

3. Automatic Film Loading 7

4. Film Cartridge Window 8

5. Holding the Camera 9

6. Viewfinder Indications 9

7. Autofocus Shooting 10

8. Focus Lock System , 11

9. Power Zooming 12

10. Flash Photography . I 13

11. Effective Flash Range 14

12. Self-timer Photography 14

13. Automatic Film Rewinding , 15

14. Manual Power Film Rewinding , 15

15. Optional Accessories (AUTO DATE)

16. Attaching the Neckstrap . 20 : 20

17. Care of the Camera

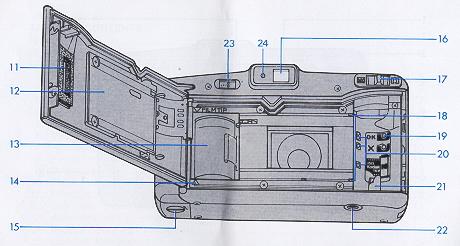

NOMENCLATURE

1. Manual rewind button

2. Self-timer button

3. Main switch

4. Shutter release button

5. Self-timer indication LED

6. Lens



7. Exposure metering window

8. Viewfinder

9. Flash

10. Auto focus window

11. Film type window

1 2. Back cover

13. Take up spoolwww.4.butkus.org

14. Film tip mark

1 5. Battery compartment cover

1 6. Viewfinder eyepiece

1 7. Power zoom button (Tale/Wide)

18. Film guide


19. Film chamber

20. Automatic film speed setting contacts

21. Film rewind shaft

22. Tripod socket

23. Frame counter

24. OK monitor (Green) LED



SPECIFICATIONS

MAIN FEATURES: -35 mm compact zoom camera

-Auto DX sensing programmed AE

-Fully motorized film transport

-Built-in sensor flash

-Built-in electronic self-timer

-Long life lithium battery

FILM TYPE: 135 size film

PICTURE SIZE: 24x36 mm

LENS: Aperture ratio: F/3.7-6.9

Focal length: f/35 mm-70 mm

Zooming: Power zoom

FINDER: Type: Actual image zoom finder

Magnification: 0.41-0.78x

Coverage: 82%

Diopter: -1.0 Diopter

Finder indications: Auto focus frame, parallax compensation mark, LED Indication: OK monitor (Green LED)

FOCUSING SYSTEM: Type: Infrared auto focusing system:

AF effective range: 1.0 (35.4")--inf.

Prefocus and cancelable: Yes

SHUTTER: Type: Stepping motor controlled changeless shutter

Type of shutter release: Electromagnetic release

Shutter speed range: Approx. 1/50 sec.-1/500 sec.

EXPOSURE METER: Type: Programmed AE

Photo cell: CdS

Exposure range: W: EV 9.5-17.0, T: EV 11.3-18.8

Film speed sensing: Automatic for ISO 100, 200,

400 and 1000. ISO 100 setting for non DX films.

TRANSPORTATION: Film loading: Auto loading First frame setting: Automatic setting by closing film door

Film winding: Motorized winding

Film rewinding: Motorized rewinding

Rewinding actuation: Automatic

Rewinding stop: Automatic

Mid-roll rewind button: Yes

Frame counter: Built-in

FLASH: Type: Sensor flash

Flashmatic: Yes

Auto recharging: Yes



Effective range: W: 1.0-5 m (35.4"-16.4'),

T: 1.0-2.7 m (35.4"-8.9')

Recycle time: Approx. 3 seconds

OTHER FEATURES: Power source: Lithium battery pack (2CR5x1): replaceable 4www.butkus.org

Battery checker: Yes

Film door window: Built-in

Tripod screw: Built-in: U-1/4"

Self-timer: Built-in: approx. 10 sec. /

Auto power shut off: Yes /



Strap: Attachable

Size: 137(L)x77(H)x61(W) mm (53x3.0x2.4") /

AUTO DATE: 137(L)x77(H)x64(H) mm /5-3X3.0X2.5")

Weight: 350 grams. (12.3 ounces) /3

AUTO DATE: 360 grams. (12.6 ounces) /



Simplified guide for basic operation

1. Install lithium battery.

2. Slide the main switch to the "POWER" position.



3. Load the film correctly and close the back door

4. Be sure the frame counter shows "1" in the frame counter window.



5. Direct the AF mark toward your subject.

6. Release the shutter by pressing the shutter release button gently.www.4.butkus.org



7. Automatic film rewinding starts at the end of the roll. The frame counter will show "S" upon completion.

8. Remove the exposed film.



1. Battery installation

(1 ) Use a coin and turn it toward the arrow mark to unlock the battery cover. Open the battery cover by sliding it away from the camera (Fig. 1).

(2) Place a 6 volt lithium battery (2CR5) in the battery compartment in accordance with the positive (+) and the negative (-) marks shown inside (Fig. 2).

(3) Slide the battery cover back to its closed position and lock the battery cover (Fig. 3).

Note:

* When the shutter release is locked or when winding/ rewinding becomes extremely slow, replace the battery with a new one.

* Battery performance declines in cold temperatures. Keep the camera as warm as possible in cold weather.

* The lithium battery will last about three years when used at a frequency of one roll of film of 24 exposures with 50% use of flash on a monthly basis, at room temperature. (Chinon Laboratory Testing)

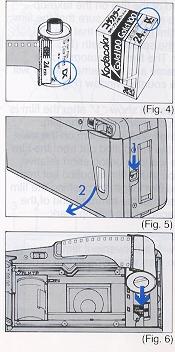

2. Automatic film speed setting

The film speed is automatically set when using a DX coded film of ISO 100 to ISO 1000 (Fig. 4). Non DX film will be set to ISO 100. When using reversal film (Slide Film), use films of ISO 100, 200, 400, or 1000.

3. Automatic film loading

Always load and unload your camera in subdued light and never in direct sunlight. This will greatly minimize the possibility of fogging the film. (1 ) Open the back cover by sliding the back cover release button downwards (Fig. 5).

(2) Insert the film cartridge into the film chamber (Fig. 6).




(3) Place the trimmed end of the film on the take-up spool up to the film tip mark. Make sure that the film lies flat between the film guides and that the film perforations engage the sprocket teeth (Fig. 7).

(4) Close the back cover. The film will automatically advance to the first frame and the frame counter will show "1 " in the frame counter window (Fig. 8).www.4.butkus.org

Note:

* If the frame counter does not show "1 " after the film is loaded, open the back cover and reload the film.

* When placing the trimmed end of the film on the take-up spool, the length of the film pulled out from the film cartridge should not be too long or too short relative to the film tip mark. If too much film is pulled out from the cartridge, adjust the film length by pushing the film back into its cartridge so that the trimmed end of the film will be precisely placed at the film tip mark.

4. Film cartridge window
This camera is equipped with a convenient film cartridge window so that you can confirm what type of film is being used (Fig. 9).



5. Holding the camera

* Hold your camera firmly in both hands with at least one elbow at your side to ensure camera steadiness when taking a picture.

* Do not cover the lens, flash unit, exposure metering window or auto focus windows with your fingers.

* Always press the shutter release button gently to pre- vent blurred pictures caused by camera shake.

6. View finder

1. AF mark

2. Parallax marks

3. AF indicator LED (Green)

Note:www.4.butkus.org

* When taking a picture closer than 1.2 meters (3.9 ft) the image area is indicated by the two parallax marks in the top left and right of the viewfinder. Compose the photograph within the imaginary zone extending from the corner of the parallax marks.



7. Auto focus shooting

(1 ) Direct the center of the AF mark toward the subject (Fig. 10).

(2) Gently press the shutter release button halfway. The AF indication LED (Green) in the viewfinder frame will light up (Fig. 11).

(3) Fully press the shutter release button to take the photograph

Note:

* If the AF indication LED blinks continuously, the subject is too close to the camera to be focused properly.

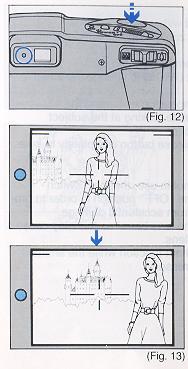

8. Focus lock system

This feature may be used when the main subject is located "OFF CENTER" in the viewfinder.

(1 ) Focus on the main subject by placing the subject within the auto-focus mark and partially depress the shutter release button until the AF indication LED lights up (Fig. 12).

(2) While holding the shutter release button in this position, recompose the subject within the viewfinder and fully depress the shutter release to take the picture (Fig. 13).

(3) The locked focus setting will be held only as long as you partially depress the shutter release button and the AF indication LED remains lighted. This focus lock feature can be cancelled by removing your finger from the release button.


9. power zooming

This camera is equipped with a power zoom to enable you to select the zoom range to compose the picture.

(1 ) Turn the power zoom lever to the right (TELE) or to the left (WIDE) to change the zoom range (Fig. 14).

(2) Select the ideal composition by turning the power zoom lever while looking at the subject through the viewfinder.

(3) Press the shutter release button completely to take the photograph.

Note:

* When the camera is not in use, the main switch should be turned to the "OFF" position in order to protect the lens system from accidental damage.

* Never push or twist the lens barrel as this may cause damage to the zoom lens.

* The zoom system will not function while the shutter release button is depressed.www.4.butkus.org


10. Flash photography

This camera automatically senses the scene brightness and fires the flash when needed.

(1 ) When the shutter release button is pressed halfway and the AF indication LED blinks once and then disappears, it means the flash is being charged. You must wait until it glows steadily before you take a picture. If it does not blink during the flash charging cycle or does not glow at all, the battery is too weak and battery replacement is required.

(2) The flash will be fully charged in about three seconds when using a fresh battery.

Note:

* The shutter cannot be released until the flash is completely charged.

* The flash will be charged even if the shutter release is kept fully depressed. The shutter will be released immediately upon the completion of the flash charging cycle.

11. Effective flash range

Wide

TELE

ISO 100 3.3 to 16.4 ft
ISO 200 3.3 to 23.3 ft
ISO 400 3.3 to 33.1 ft
ISO 1000 3.3 to 46.9 ft
ISO 100 3.3 to 8.9 ft
ISO 200 3.3 to 12.5 ft
ISO 400 3.3 to 17.4 ft
ISO 1000 3.3 to 24.9 ft


12. Self-timer

The self-timer feature allows the photographer to be in the picture.

(1 ) Place the camera on a tripod or other firm support, and direct the multi AF mark toward the subject (Fig. 15).

(2) Press and hold the self-timer button on the top of the camera and then press the shutter release button completely to start the self-timer operation (Fig. 16).www.4.butkus.org

(3) The self-timer indication LED will light up and the picture will be taken in approximately 10 seconds. The self-timer indication LED will initially glow and then will blink for two seconds before the shutter is released.

Note:

* To cancel the self-timer during its "count down", press the self-timer button once or slide the main switch to the "OFF" position.

13. Automatic film rewind

(1 ) When the roll of film is completed, a delay of from two to three seconds will occur before the camera automatically starts rewinding the film. During the rewinding, the frame counter will count backwards.

(2) When the rewinding is completed, the motor will stop automatically and the frame counter will reset to the start "S" position (Fig. 17).

(3) Push the back cover release button down to open the back cover and remove the cartridge from the film chamber. Be sure the frame counter shows "S" before opening the back cover.

14. Manual rewind

If you want to rewind the film before it has been fully exposed, push the rewind button on the top of the camera. Use a ball-point pen or a similar object which is not too sharp. The camera will then perform as it did under the "FILM REWINDING" section (Fig. 18).




15. Optional Accessories (AUTO DATE)
(1) YEAR/MONTH/DAY, DAY/HOUR/MINUTES SETTINGS

(A) Year/month/day setting

Example: 24 December, 1990

1. With a ball point pen or similar object (fingernail), press the MODE button for the year/month/day setting.

2. With a ball point pen or similar object (fingernail), press the SELECT button to locate the "year" position. A blinking number will appear.

3. With a ball point pen or similar object (fingernail), press the SET button to set "90".

4. Press the SELECT button to locate the "month" position above whose number the "M" (month) indication always appears and whose number appears blinking. Then, press the SET button until "12" appears.

5. Press the SELECT button to locate the "day" position. The blinking "day" indicating number will appear. Then, press the SET button until "24" appears.

Note:
* Every time you press SET button, the number shown on the display window proceeds consecutively. When you press and hold the SET button for more than a second, the numbers will change continuously.

B) Hour/minute setting

Example: 19:58 (7:58 PM)

1. With a ball point pen or similar object (fingernail), press the MODE button for day/hour/minute setting.

2. With a ball point pen or similar object (fingernail), press the SELECT button until a blinking "!" appears. Press the SET button to start "00" second.

3. Press the SELECT button to locate the blinking "minute" position. Press the SET button to set "58".

4. Press the SELECT button to locate the blinking "hour" position. Press the SET button to set "19".

(2) DATA IMPRINTING

When the above procedure (1) is completed, select, by depression of the MODE button, the year/month/day, month/day/year, day/month/year mode, day/hour/ minute mode or non imprinting mode that is desired.



Note:

* The data will not be sharply defined if the picture content on the bottom right hand corner of a horizontal picture is white or yellow.

* Imprint display "-" in the upper right corner of the LCD will blink until the completion of the imprinting.

Make sure that the "-" appears lit on the LCD before releasing the shutter during imprinting.

· The Auto Date back is powered by the camera's battery. The following steps should be taken as soon as possible to avoid any loss of date.

1. When replacing the battery, do so as quickly as possible. If the Auto Date back is left without a battery for two to three hours, the time and date readings may be incorrect even after a replacement battery has been installed.

2. If an incorrect LCD indication appears after the installation of a new battery, reinstall the battery in the battery compartment or "reset" it by releasing the shutter.

3. Always check for the correct time and date indications after replacing the battery.

IMPORTANT

1. To clean the unit, use a dry cloth without any cleaning agent

2. Do not depress the buttons with sharp or pointed object such as a knife.

3. Rough handling may result in damage to the unit.

4. Keep the lithium battery out of the reach of children.

LCD Information

1. Use the unit at temperatures between -1 0°C and +50°C (14°F-122°F) for normal operation of the liquid crystal.

2. Do not expose the unit to the direct rays of the sun for a long time since the LCD may turn black at temperatures above 60°C (1 40°F).

3. Performance of the LCD declines as the temperature becomes low.


16. Attaching the neck strap.
The strap goes alongside the body.

17. Care of the Camera

This camera is a precision photographic instrument. When used with care it will provide years of trouble-free service. Protect your camera from dirt, rain, dampness and excessive heat. Avoid touching the lens. To clean the lens, wipe it gently with a soft lintless cloth or tissue. Do not use eyeglass tissues as they might damage the lens coating. Do not open and touch the inside of the camera as possible high voltage in the flash circuitry can be dangerous. When the camera will not be in use for a long period of time, turn off the Main Power Switch and store in a well ventilated, cool, dry place. Due to the sensitive characteristics of the micro computer built into the camera, the camera may not operate properly even when a fresh battery is installed. It is not a malfunction. If this should occur, turn the Main Power Switch "ON" and "OFF" or reinstall the battery again.
