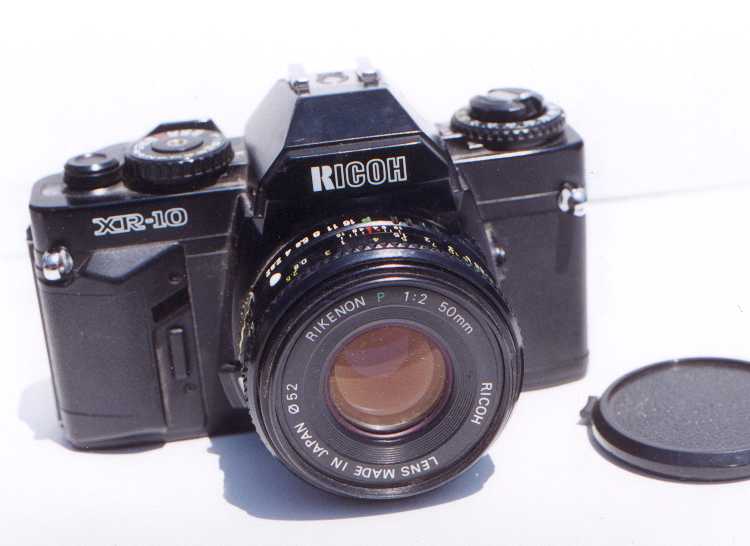

Ricoh XR-10
Back to main Camera Manual page
Ricoh XR-10 Specs:
     Type: 35 mm SLR with automatic electronic exposure control focal plane shutter.
     Film Format and Frame Size: 35 mm film, 24/36mm
     Lens Mount: K Mount
     Standard Lens: 50 mm RIKENON f/2.0-P
     Shutter: Electronically controlled, vertically moving focal plane shutter, Automatic: 16 sec. to 1/1000 sec.
     Manual: 16 sec. to 1/1000 sec. (by Quartz control) B(Bulb)
     Self-Timer: Operating delay of approx. 10 seconds. During operation, red LED blinks.
     Viewfinder: Field of view covers 93% horizontally and vertically. Magnification: 0.88X (with 50mm F1.4 standard lens).
     Display by LCD: Exposure adjustment, Bulb, Manual, Overexposure, Underexposure, Shutter
     speed indicator, Battery low warning signal, F-stop number, AE lock. LED indicator: flash ready indicator.
     Focusing: Diagonal split-image spot.
     Exposure Meter: TTL full open metering for center-weighted average light reading.
     Exposure Coupling Range: EV 0-EV 18 (with ISO 100 film, 50mm F1.4 lens).
     Film Speed Range: ISO 12-3200.
     Flash Terminal: X synchro contact.
     Accessory Shoe: Hot shoe (with Flash Ready Signal Contact).
     Exposure Adjustment: Exposure adjustment sytem (+2 ~ -2, in 1/3 steps), AE lock system.
     Automatic Film Advance: Possible with XR Winder-2 and PG-4 (Power Grip).
     Exposure Counter: Additive, automatic resetting.
     Film Rewind: Film rewind crank system.
     Mirror: Swing back type quick return mirror.
     Back Cover: Hinged type, opened by pulling up film rewind knob.
     Other Features: Direct contact for data back.
     Power Source: Two LR44 1.5V Alkaline batteries, two SR44 silver oxide batteries or one CR-1/3N 3V Lithium battery.
     Dimensions: 136mm(W)x86mm(H)x51mm(D) (body only) (5.4"x3.4"x2.0").
     Weight: 470g (body only) (16.6oz).
