Interesting
facts about this "door to door" camera by Googling the name and a
lawsuit link here
(webmaster: one would have to say this is the "first" autowind
camera.
It also seems to be like the Chinon Belami AF with the flash unit is always
on. The
rechargeable batteries in this model seem to be very weak.)
Takes the work out of photography
- makes picture taking fun!
Please read the following hints and procedures which will assure you of
taking the best possible pictures.
DO NOT attempt to disassemble your camera. It should be done only
by an authorized serviceman.
CHARGING YOUR FOTRON
 |
We suggest that you leave your Fotron "plugged in" to a standard 110
Volt - 115 Volt 50/60 Cycle A.C. outlet. This will insure you of a fully
charged camera for that unexpected occasion or trip. The neon light
stays on while you Fotron is charging. If you Fotron has not been used
or charged for 30 - 45 days:
* Charge overnight (approx 18 hours) You may shoot one magazine of
film. No more.4.butkus.org
* Should you intend using more that one snap load magazine of film, we
recommend charging your Fotron for 72 hours or longer.
* Should you decide to store your Fotron, you may do so after charging
for a minimum of 72 hours. |
A simple step-down transformer will be necessary for charging your
Fotron in countries whose standard (current) voltage is other than 115
volts. A.C. This transformer my be purchased from Traid for $10.50
plus tax.
A voltage inverter is necessary to charge you Fotron while traveling.
When AC Voltage is not available, this unit will permit you to charge
your Foton from the cigarette lighter socket in your car.
THE MORE YOU USE YOUR FOTRON CAMERA, THE MORE YOU
WILL LIKE IT.
LOADING YOUR FOTRON
 |
Here is the correct way of loading your Fotron:
[ ] Place camera face down with the base of the camera towards you.
[ ] Place snap-load magazine over recessed area at the back of the camera.
[ ] Place both thumbs on the Magazine Clamps and pull outwards. The magazine will fall into the
recess.
IMPORTANT: Push down the right side of the snap-load first. Then immediately on the left side.
Magazine is now locked in place. Don't be alarmed with HUM of film winding to first exposure #10.
Camera will stop at this position. The white arrow on top of the camera will tell the number of
remaining pictures. DO NOT ATTEMPT TO REMOVE MAGAZINE UNTIL ALL 10 PICTURES ARE
TAKEN. |

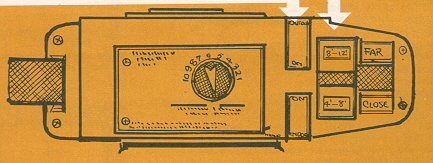

| 1. Press "INDOOR" or "OUTDOOR" button to turn "ON" your Fotron. Allow sufficient time (about 15
seconds for the indicator lights on either side of the lens to blink at least five times. 2. Check distance between subject and your Fotron to determine the correct distance button. The
slots next to the take buttons "CLOSE" and "FAR" indicate the correct distances respectively.4.butkus.org |
 |
Three BUTTON MODELS
In the earlier 3 button models, the, MEDIUM range covers 6 feet to 8 feet indoors and 6 feet to 10 feet outdoors. For best results with these models we recommend that you limit your outdoor exposures for deep shade and night
pictures only. For excellent results outdoors use FAR button for subjects from 7 feet to infinity in bright sunlight.
TAKING PICTURES
 |

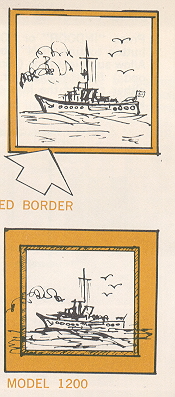

Raise camera to eye level and "frame" subject within red border. Camera must be switched "ON".
In the earlier model 1200 only - In this model, confine your subject to inner square in viewfinder.
Now press the correct "DISTANCE" button and the built in strobe will flash. The camera will snap
your picture and automatically advance to the exposure.
IMPORTANT HINT. We suggest that immediately after taking a picture, you depress the "OFF"
button. This procedure automatically prevents any additional drain on the battery and will allow you
to take more pictures before recharging your Fotron. |
TAKING OUTDOORS PICTURES
* On bright sunny days, your Fotron will take beautiful pictures by pressing the "OUTDOOR" button.
You may disregard the blinking lights in front on your camera. (Strobe not required.)
When taking pictures outdoors of people or scenery color will be brighter if the sun is situated
behind at the photographer's back so the sun is shining directly on the subject being photographed.
When using your strobe outdoors at night, stay within 15 feet on your subject.
TAKING INDOOR PICTURES
* The Fotron built-in Sunburst strobe will throw light a maximum distance of 15 feet. After you have
turned on the camera, wait until the small indicator lights have blinked at least 5 times, before you
snap each picture.4.butkus.org
* Use indoor setting. Allow sufficient time for lights on either side of lens to blink at least 5 times.
Remember you need the built-in strobe to light up your subject. Your Fotron will add that extra
sparkle to make that good picture excellent.
FOR CLOSE SHOTS
Take close-ups of people. Stay within 4 feet to 7 feet of the subject. Have subject in bright clothing
or standing near brightly colored objects.
FOR DISTANCE SHOTS
Compose your pictures with a strong | center of interest. Hold camera so I that the composition of
your photo graph is more interesting.
ORDERING FILM
To avoid delays in handling and
processing your film and reprint orders
we recommend that all film orders and
reprint orders be made in the green
mailing envelopes provided. At all times,
please avoid sending monthly payments
with film orders.
STORING FILM
Often times we fail to recognize the
importance of storing color film. The
manufacturer recommends storing color
film in "Cool, Dry Places."
We recommend storing Fotron Snap.
Load Magazines in sealed plastic bags
in your refrigerator. By using this
method, color film can be safely stored
over a long period of time.4.butkus.org
That's it. If you have any questions
regarding performance or operation of
your Fotron Color Camera, please
contact our Customer Relations Department at: TRAID D CORPORATION.
777 FLOWER S. REET, GLENDALE,
CALIFORNIA 91201, (213) 247-3000.
We'll be happy to serve you. Now,
prepare yourself for the most exciting
photography you've ever experienced.
"FOR YOUR PROTECTION "
Traid guarantees the Fotron Camera for
two years from date of purchase under
normal use against defects in material
and workmanship and agrees to repair,
or at its option to replace, free of charge,
the Fotron Camera when returned to
Traid. After two years, Traid agrees to
make any necessary repairs to the
Fotron Camera at its average cost and
shipping charges for repairs
completed on all cameras.
FOTRON FLYER - Click to see the flyer on this wonderful
camera.
