Miranda EE-2
THIRD SECTION
BACK TO FIRST SECTION TO SECOND SECTION
DEPTH OF FIELD : APERTURE... VISUALLY+
1. Film Plane 2. Subject's Distance 3. Large Aperture 4. Small Aperture 5. Subject 6. Small Depth of
Field 7. Front Depth 8. Rear Depth 9. Depth of Field 10. Large Depth of Field
Very frequently the composition of a picture can be enhanced by having the main subject in sharp focus while the surrounding objects in the scene are soft
and out of focus. This will de-emphasize distracting background objects and concentrate the viewer's
attention on the principal subject.
PREVIEWING DEPTH OF FIELD
The Miranda EE-2 offers both full open and closed-down metering. When using the EE-2 in its closed-down mode you will preview the depth of field while
you are determining the proper exposure. In the full-open mode, previewing depth of field, and determining the proper exposure are done independently.
Provision for DEPTH OF FIELD PREVIEW is made on the lens, not on the camera body. For this reason the method for previewing the depth of field will
vary with the lens mounted on the camera.4www.butkus.org
Miranda Auto EC lenses have a PREVIEW LEVER on the lower left.
Each Miranda Auto EC lens also features a DEPTH OF FIELD SCALE on the top of the lens. To read the approximate depth of field, note the aperture
number indicated on the APERTURE RING. The same numbers to the left and right on the DEPTH OF FIELD SCALE point to the depth indicated on the
DISTANCE SCALE.
For example: On the Miranda Auto EC 50mm F/1.4 lens as shown at left: when the aperture is at f/8 and the subject is at 5 meters (16.25 ft), the depth of
field extends from approximately 4 meters ( 13 feet) to 10 meters (32 5 ft).
To visually see the depth of field, stop the aperture down (close diaphragm) by sliding the PREVIEW LEVER downward.
DEPTH OF FIELD is the zone of diminishing, but still acceptable. sharpness in front of and behind the image plane on which the lens is focused. Usually
the front depth is smaller than the rear depth.
HOLDING THE CAMERA
| CLICK HERE TO SEE HOW TO HOLD YOU CAMERA | To avoid blurred photos the camera must be held firmly The sharpest pictures can be taken only when the camera does not move while the shutter is released. |
* Firmly hold the camera with both hands.4www.butkus.org
* When the camera is utilized in a horizontal position, comfortably brace your elbows against your body Rest the camera on your extended right thumb.
Take a deep breath, and release half. Then while holding in the rest, smoothly depress the SHUTTER RELEASE BUTTON with the tip of your right
index finger. The camera is further steadied by pushing the camera in towards your nose with the last three fingers of the right hand. Your left hand
should serve to focus and support the lens barrel.
* When the camera is held vertically your right hand is essentially in the same position with the elbow braced against the body. The left hand should either
function as above or grasp the end of the camera gently pulling in.
* The camera should be mounted on a tripod and a cable release used when taking pictures with a telephoto lens and/or at slow speeds (1/ 15 second or
slower). It is also recommended for microphotography.
 |
If you don't want to take a picture after cocking the shutter, turn the SHUTTER RELEASE LOCK left towards the SHUTTER RELEASE LOCK MARK until it click stops. This prevents accidental release of the shutter. To release the BUTTON simply turn the LOCK back full-right. |
USING THE SELF- TIMER
 |
The SELF-TIMER is actuated by depressing the shutter button. The operating time is adjustable from half-a-second to ten seconds. depending upon how far the lever is turned. The lever may be set either before or after advancing the film. |
 |
The SELF-TIMER can be set at any position of its run and thus lengthen or shorten its operating time. Operation may be interrupted at any time by resetting the lever to its original vertical position. In this case. the shutter can be released as usual since the self-timer is not in operation. (However, operate the self-timer once after completing the roll of film in the camera to release the actuating spring of the self-timer mechanism). |
 |
At 1/15 sec. or at a slower shutter speed, hand-held shooting is apt to cause camera shake. Be sure to use a sturdy tripod when shooting at slow shutter
speeds or B.
When shooting at a slow shutter speed or with the self-timer using the EE system, it is recommended that the accessory "cover plate" to the viewfinder's eyepiece be used. or cover it with a hand as otherwise backlight may enter through the eyepiece and affect the exposure. |
The EE control cannot be used at a 1/2 sec. or slower shutter speeds, with ASA 100 film, nor can the "B'' exposure be used for EE operation. Therefore,
release the lens from the EE position in readiness for manual photography. (Refer to p.28)
When the shutter has been operated at a slow speed. make sure that the shutter is completely released before advancing the film.
INTERCHANGEABLE LENSES
 |
To remove the lens, first set the APERTURE RING to the full-open position (smallest number), depress the LENS RELEASE LEVER and while keeping it depressed, rotate the lens 45 degrees counterclockwise until the LENS POSITIONING MARK is aligned with the LENS POSITIONING ARROW. Lift the lens off. SEE NOTE - Z1 page 57 |
 |
To attach the lens, align the LENS POSITIONING MARK on the Miranda Auto lens with the LENS POSITIONING ARROW on the camera body. Turn the lens about 45° clockwise until it click locks into place. |
 |
After interchanging lenses as explained in N2 above, turn the APERTURE RING from the largest number to the smallest number and back again. This assures proper coupling between the lens and camera mechanisms.4www.butkus.org |
|
When temporarily putting a Miranda Auto Lens down, always place the front element side down. Placing the lens down the other way may damage the protruding levers. It is best to place the rear cap on, to avoid dirt and dust entering the lens mechanism. |
* ALL MIRANDA AUTO EC lenses feature an automatic EE diaphragm mechanism, and Miranda's unique single layer anti-reflection coating
(magenta/amber combination type). Additional speci fications available On request from your local Miranda agent.
UTI LIZI N G FLASH U N ITS
 |
When available light is low or supplemental lighting is needed, a flashgun or an electronic flash unit should be used with your Miranda EE-2. Slip the flashgun or electronic flash unit base into the rear of the ACCESSORY SHOE. If the flash unit has a locking device, tighten it. |
 |
When a hot shoe-equipped electronic flash unit is slid into the ACCESSORY SHOE no synchro cord is necessary. When a regular cord-equipped strobe or flashgun is used. attach it to the ACCESSORY SHOE. and connect the PC cord to the FLASH TERMINAL located on the side of the camera, underneath the rewind crank. |
 |
The synchro contact is interlocked with the shutter dial for automatic switching. The X contact is only connected when the dial is set at 1/60 sec. (60 in red). At all OTHER shutter speeds, the camera is synchronized for flash bulbs.4www.butkus.org |
 |
When flash is used. the EE function cannot be utilized. Operate the camera's lens aperture and shutter speed manually following the Guide Numbers
provided in the instruction manual or on the case of the strobe or flash gun. Note: When the Automex or earlier Sensorex pentaprism or reflex-type viewfinders are used, cordless flash photography cannot be performed without a minor adjustment. |
 |
MIRANDA FOCABELL A4 Processional precision-tooled, compact bellows system. |
REWINDING THE FILM
 |
Depress the REWIND D BUTTON until it clicks. |
 |
Flip open the FILM REWIND CRANK K and turn it clockwise, following the REWIND DIRECTION ARROW. Continue turning until you feel the resistance cease. then turn the crank which now moves very freely, two or three more turns. |
 |
Pull the FILM REWIND KNOB all the way up, and the back cover will swing open. Remove the film cassette. Use a blower brush to remove film chips or other particles from inside the camera.4www.butkus.org |

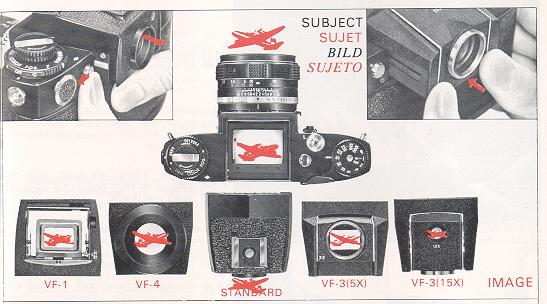

INTERCHANGING THE VIEWFINDER
The viewfinder can be removed for interchanging by sliding it toward the rear, while pushing the VIEWFINDER RELEASE BUTTON to the left To attach,
match the viewfinder's base to the camera's groove and slide it forward until it clicks into position. When a reflex-type viewfinder is used, its eyepiece is
apt to permit adverse light to enter, which may cause exposure error. Be sure to shield the light, particularly in EE shooting.

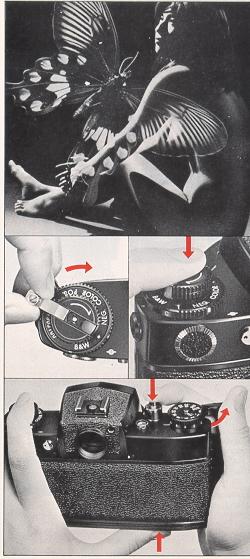

TAKING DOUBLE EXPOSURES
 |
1. To take deliberate double exposures, make the first exposure in the normal way.
2. Next take up the slack in the film cassette by turning the REWIND D CRANK K in the direction of the arrow until it stops. DO NOT force the CRANK. K.
3. WHILE STILL HOLDING THE REWIND CRANK IN THIS POSITION, depress the REWIND BUTTON on the bottom of the
camera
|
PRECAUTIONS IN STORING
For proper care of any camera it should be regularly exercised and not put away for a long period
without use: Many troubles can be attributed to non-usage. Therefore you should store your camera where you can get at it easily and put it through its
normal operations at least once per month, i.e. SET the shutter and release it a few times as if taking a picture
TURN to a slow shutter speed and again release a few times.4www.butkus.org
OPERATE the selftimer.
EXAMINE the exposure meter for correct operation.
CHECK film transport.
CHECK the pentaprism viewfinder.
These actions will keep the mechanism in good order, retaining the natural qualities of the
lubricant--thus ensuring the camera is ready for instant use when required.
Before embarking on a holiday or other important assignment it is advisable to test the camera at
least four weeks prior to your departure. Many spoiled holiday records would have been avoided
if this precaution had been taken. Treat your camera tenderly. It has been produced with great
care and attention to detail. Do not allow it to be swung about by its shoulder strap or thrown
into the back of a car etc. If you protect your camera against possible damage, you will be amply
repaid by years of excellent and trouble-free service.
ACCESSORIES
The Miranda EE-2 is a system camera offering a wide range of photo-optical accessories to broaden your picture-taking enjoyment. Ask your Miranda
dealer to show you the full line of Miranda accessories... Viewfinders, Copy Stands, Extension Tubes, Focabell A4 and Auto S. Lens
Adapters, and more.
STORING AND CARING FOR YOUR MIRANDA EE-2
DO remove the battery if the camera is to be stored
DO store the camera with a drying agent (silica gel) separate from the camera case.
DO make sure the shutter is not cocked
DO use a soft blower brush to remove dust on the lens, and foreign matter inside the mirror housing and film transport system.
DO use a soft dry cloth to clean external metallic parts.
DO use special lens tissue with pure alcohol or ether only, to clean smudges off the lens or eyepiece.
DO NOT point the camera directly at, or leave the lens exposed to the sun.
PR E CA U Tl O N S
 |
When the lens has been removed, do not expose the camera lens mount opening to sunlight or other excessive light as you risk fogging the film. We suggest if no shade is available that you turn your back to the light source, and interchange lenses in the shade of your body.4www.butkus.org |
 |
When not using the camera for ANY length of time always turn CDS METER SWITCH to OFF. This conserves unnecessary battery drain. It is also a good policy to turn the SHUTTER RELEASE LOCK to the locked position. |
