TABLE OF CONTENTS                 Page No.                    TABLE OF CONTENTS                 Page No.

Description of Parts . Front and Back Flaps

How to Use This Book ......1

Installing the Batteries .........2

Checking the Batteries ........3

Loading and Advancing The Film..... 4. 5, 6. 7

Exposure Counter & Setting the Film Speed..... 8

Holding The Camera ...............9

Checking Light & Automatic Flash Photography  ... 10

Taking Pictures Automatically ......11. 12

Rewinding and Unloading Film ......13,14

Care and Storage of Your Camera

Photographs & Negatives ...................15

3-Dimensional Picture Suggestions .......16.17

Specifications ...........18

Warranty ..................194www.butkus.org

Customer Service .......20

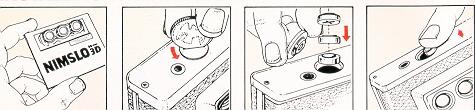

INSTALLING THE BATTERIES
1.

2.

3. 4.

1. The batteries
Three Eveready 386 silver oxide batteries have been packed separately in your camera package.

2. Opening the Battery Chamber
Insert a coin, or similar object, into the groove in the Battery Chamber Cover (23). Make a 1/3 turn, counter clockwise, and remove.

3. Battery Insertion Procedure
Insert the batteries one on top of the other into the Battery Chamber with the plus mark (+ ) facing into the camera.  You may find more convenient to load the batteries by placing the flat plus (+) side of the battery against the bottom of the camera and slide it toward the opening of the Battery Chamber, as illustrated. Let each battery drop into the Battery Chamber until all three have been loaded. Return the Battery Chamber Cover and tighten.4www.butkus.org

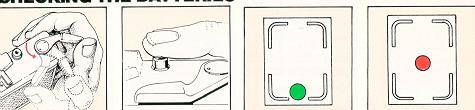

CHECKING THE BATTERIES
1. 2. 3. 4.

1. Advance the Film Advance Lever Check the batteries each time before using the camera. Advance the Film Advance Lever (1) to cock the shutter.

2. Depress the Shutter Release Button Then press the Shutter Release Button (2) lightly while looking into the Viewfinder Eyepiece (15).

3. Green dot location In Viewfinder

4. Red dot location In Viewfinder
If a
green dot appears at the bottom or a red dot in the center of the viewfinder, the batteries have enough power to operate your camera.
If neither signal appears, the batteries are either positioned incorrectly or have insufficient power and must be replaced.

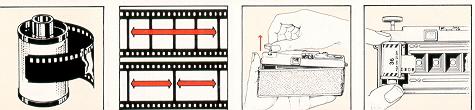

LOADING & ADVANCING THE FILM
1. 2. 3. 4.

1. Uses 35mm color print film
Your Nimslo Camera uses all popular brands of 35mm color print film with a rating of either ASA 100 or 400. You may use any brand in 36, 24, 20 or 12exposure rolls. However, AGFA film is sold with pre-paid processing mailers which cannot be redeemed by Nimslo.

2. Two 35mm frames produce one 3-Dimenslonal photograph
The Nimslo 3-Dimensional process requires a group of four half-frame 35mm negative images to produce a 3-Dimensional photograph.
Therefore, HALF THE NUMBER OF PICTURES STATED ON THE FILM CASSETTE WILL BE PRODUCED ON ANY ROLL OF FILM USED IN YOUR NIMSLO CAMERA.

3. Opening the camera
Open the Camera Back Cover (19) by pulling up firmly on the Film Rewind Knob (10) as far as it will go until the back springs open.4www.butkus.org
Avoid direct sunlight when you load or unload the camera.

4. Place the film Into the Film Chamber
Leave the Film Rewind Knob (10) in the up position and insert the film cassette with its lip pointed to the right and the protruding end down, into the Film Chamber (21).

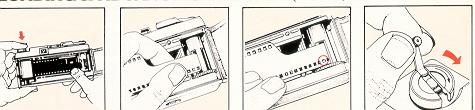

5. 6. 7. 8.

5. Secure the film cassette and bring film to the Take-Up Spool
Press the Film Rewind Knob (10) down as illustrated. You may have to rotate the Film Rewind Knob slightly for it to return to the down position.
Pull out just enough film to reach the Take-Up Spool (1 7).

6. Film can be inserted Into any slot of the Take-Up Spool
Insert the end of the film leader into a slot of the Take-Up Spool.

7. Attach your film to the Take-Up Spool
Latch one of the film perforation holes on the bottom edge of the film onto the small Film Perforation Hole Hook (26) at the base of the Take-Up Spool.

8. Tighten the film
Fold out the Film Rewind Crank (9) and gently turn it in the direction of the arrow to take up any slack in the film. (Be careful not to "over" rewind the film back into the cassette!) Fold back the Film Rewind Crank to its original position.4www.butkus.org

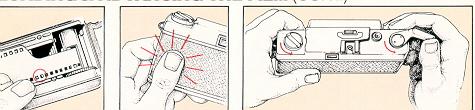

LOADING & ADVANCING THE FILM
9. 10. 11.

9. Engage the film on the Film Sprocket Gear
Make sure the film perforation holes on the lower edge of the film, latch (or "hook") onto, the Film Sprocket Gear (24)-- located at the lower edge of the film leader to the left of the Take-Up Spool. (The film should not obscure your view of the sprocket gear teeth.)

10. Close the Camera Back
Close the Camera Back Cover (19) by firmly pressing it into the locking position.

11. Advancing the film
Cock the Film Advance Lever (1 ) all the way. . . and release. . allowing it to return to its normal position.
Note, that as you cock the Film Advance Lever (1), the Film Rewind Knob (10) rotates in a counter clockwise direction indicating that the film is advancing properly.4www.butkus.org

12. Releasing the Shutter

Press the Shutter Release Button (2).

13. Advance to number ·1. for your first picture
Repeat both steps until the number "1" appears in the center of the Exposure Counter Window (13). (You may have to repeat the sequence 1 or 2 times.)

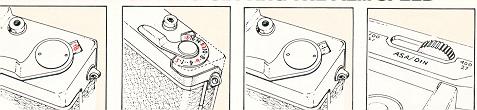

EXPOSURE COUNTER & SETTING THE FILM SPEED
1. 2. 3. 4.


1. Exposure Counter Window
The Exposure Counter Window (13) tells you how many pictures you have taken. Since your camera uses two "standard" exposures for every one 3-Dimensional picture, the counter will indicate a maximum of 18 pictures (for a roll of 36 exposures.) Always keep in mind that the number of 3-Dimensional exposures available equals 1/2 of the exposures stated on the film box--with the Exposure Counter automatically keeping track. To further remind you, the numbers 6, 12, and 18 are highlighted in red to indicate the end of the roll (for 12, 24, and 36 exposure rolls, respectively).

2. Numerical frame indication
Dots as well as numbers indicate the exposure count. You won't see consecutive numbers: 1 2 3 4 5678. You will see: S 1 4 * 6 * 8 and so on.4www.butkus.org

3. Setting film speed
Move the Film Speed Selector (5) on top of the camera toward ASA 100 or 400 to match the film you have loaded into your camera.  As a reminder, keep the end flap of your film box and place it in the sticker holder on your neck strap for quick reference of both your film speed and number of exposures.

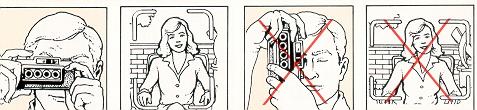

1. 2.

1. CORRECT camera position
Hold the camera firmly at the sides with both hands and bring it to your eye in a level position as shown above. KEEP YOUR FINGERS, AND ALL OTHER OBJECTS, AWAY FROM THE FRONT OF THE LENSES.

2. INCORRECT camera position
Pictures taken while holding camera in the position shown in illustration 2 (above) WILL PRODUCE NEGATIVES WHICH CANNOT BE PRINTED INTO 3-DIMENSIONAL PRINTS.

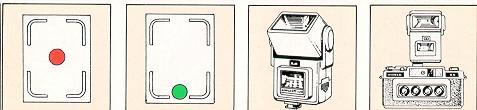

CHECKING LIGHT & AUTOMATIC FLASH PHOTOGRAPHY
1. Red Signal 2. Green signal 3. 4.

Look into the Viewfinder Eyepiece (15), and push down lightly on the shutter Release Button (2), being careful not to depress the button all the way down for an exposure. When the button is partially depressed, you see either a red or green dot. The Film Advance Lever (1) must be cocked.4www.butkus.org

A red dot indicates there is not enough light available for a correctly exposed negative and that an Opti-Lite Flash should be used for additional lighting. Once the flash is attached--and turned on--a green dot will soon appear in the viewfinder indicating the flash is ready.

A green dot indicates/here is sufficient light available for a correctly exposed picture.

3. Nimslo Opti-Lite Electronic Flash For most indoor and evening photos, it is advisable to use the Nimslo Opti-Lite Electronic Flash to provide the proper illumination or eliminate unwanted shadows.

4. The Nimslo 35mm 3-Dlmensional Camera and Opti-Lite Electronic Flash
The Nimslo Opti-Lite Electronic Flash has been exclusively designed for the Nimslo 35mm 3-Dimensional Camera. It possesses a unique twin flash for both direct and "bounce" lighting to enhance all objects that add to the depth of the picture.4www.butkus.org

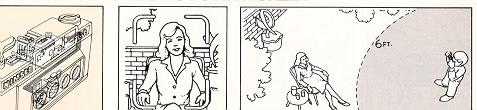

TAKING PICTURES AUTOMATICALLY
1. 2. 3.

1. Taking pictures automatically
Sophisticated electronic circuitry built into the camera automatically controls the exposure allowing you to concentrate only on framing and composition. Your camera will automatically select the best combination of aperture and shutter speed to achieve a correctly exposed negative.

2. Framing the picture
Looking into the Viewfinder Eyepiece (15) you'll see a bright line frame--an outline of the image area in which you can compose your photograph quickly and accurately. It is a guide to show you which objects in the scene will actually be in your 3-Dimensional photograph.

3. Viewing a typical 3-Dimensional scene
When composing your pictures move around while you are looking through the camera's Viewfinder. Take the photograph when you see the most pleasing arrangement, making sure all your picture is inside the Bright Line Frame. WHEN COMPOSING YOUR PICTURES YOU SHOULD AVOID SUBJECTS OR OBJECTS IN THE SCENE CLOSER TO YOU THAN 6 FEET This will allow you to compose beautiful 3-Dimensional photographs which are in sharp, crisp focus.

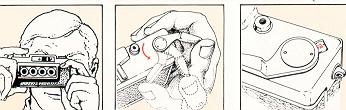

4. 5. 6.


4. Now you and the camera are reedy to take pictures
Because the lenses are prefocused, no manual adjustments are required. Simply hold the camera steady and press gently down on the Shutter Release Button (2) until you hear a click.

5. Advance the Film
Before you take the next picture, advance by moving the Film Advance Lever (1) one full stroke (and letting it return to its original position.) Now you are ready to shoot again.

6. End of Roll
When all the exposures are used, you will see a red number in the Exposure Counter Window (13) and feel a resistance indicating the end of the roll. DO NOT FORCE THE FILM ADVANCE LEVER at this point. It's time to rewind and unload the film.4www.butkus.org

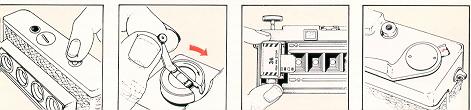

REWINDING AND UNLOADING FILM
1. 2. 3. 4.

1. Film Rewind Release Button
To disengage your film when it is complete, depress the Film Rewind Release Button (25) on the bottom of the camera.

2. Film Rewind Crank
Fold out the Film Rewind Crank (9) on top of the camera. Turn the crank in the direction of the arrow (clockwise) to rewind the film back into the cassette. You will feel tension while rewinding. Continue to turn the Film Rewind Crank until you feel no tension indicating that the film has been fully rewound.

3. Unloading the Film
Pull up the Film Rewind Knob (10) to open the back of the camera and remove the film cassette.

4. Exposure Counter
The Exposure Counter (13) automatically will return to " S" when the Camera Back Cover is opened.

6. Sticker Holder on Camera Neck Strap

Place a supply of Film Process Identification Stickers in the Sticker Holder on your camera neck strap for handy use when loading film into your camera.



5. Film Process Identification Sticker

One of the red stickers supplied in the package with your camera purchase must be placed on your film cassette to alert the store clerk where you take your film for processing that SPECIAL NIMSLO HANDLING is required to obtain 3-Dimensional pictures. Please write your last name in the box provided on the film process identification sticker, as an additional means of identification. A new supply of Process Identification Stickers will be returned to you with each finished roll of Nimslo processed pictures. They are also available at all authorized Nimslo Professional Processing outlets.4www.butkus.org


CARE AND STORAGE OF YOUR CAMERA, PHOTOGRAPHS & NEGATIVES

Camera
Do not drop the camera, knock it against anything solid or misuse it. Accidents and rough handling can easily damage the internal mechanism of the Camera.
Your camera is not waterproof. Protect it from water splashes and rain.
Do not touch the lenses.
Always keep the viewfinder and lenses as clean as possible. To remove loose dust and dirt, clean with a lens brush or soft lint-free cotton cloth. Do not try to wipe off granular dirt or dust by any other means or you may scratch the lenses.

Smudges, such as finger prints, should be carefully wiped away with a lens cleaning tissue. For difficult marks, use a liquid lens cleaner and lens tissue.
When storing your camera, keep it in a cool, dry, clean, well-ventilated place.
If storing for a long period, the batteries should be removed from the battery chamber.
Do not leave your camera in the glove compartment or rear window deck of your car.4www.butkus.org

Photographs
Nimslo photographs are made on a special material which is highly durable and resistant to extreme temperatures. However, you should treat Nimslo 3-Dimensional photographs like any other photo sensitized product and be careful to protect the surface from scratches and liquids which may leave a mark or smudge on the material.

Negatives
A lint free wallet will be supplied with your developed negatives for safe storage. Please remember always to HANDLE DEVELOPED NEGATIVE STRIPS BY THE EDGES. Oil from your skin and other substances from your fingers usually ruin otherwise perfect negatives.

When you require reprinted copies of your 3-Dimensional prints you must supply the original negative groups in strips to your Nimslo Dealer or your Nimslo Professional Film Processing Laboratory.

IMPORTANT a copy print cannot be made from your Nimslo 3-Dimensional Print, the laboratory must have the original negative group.


3-DI MENSIONAL PICTURE SUGGESTIONS

·The world around you is three-dimensional and it is usually best to take pictures of subjects and objects just the way they are naturally4www.butkus.org

·Look at the picture on the right. Scale and depth in the picture are provided by the relationship of each object to the others, as well as the height, width and depth of objects. A variety of items in the picture will enhance the 3-Dimensional effect. Bright colorful areas in pictures also add depth. You can achieve this by having your subject wear colorful clothes or by taking pictures of colorful scenes.

·Frame your picture to include subject and background objects.

·For scenic pictures, include perhaps a tree, a person, etc., so that your picture has foreground interest as well as background and scenery. FOR BEST RESULTS AVOID HAVING ANY OBJECTS CLOSER THAN 6 FEET TO THE CAMERA.

·For best results outdoors, try to keep the sun over your shoulder while avoiding poses that have your subject facing directly into the sun.

·Posing subjects directly against a wall, will result in flat pictures lacking depth. Move the subject to a more interesting area--one with greater perspective--with more space between the subject and background.

·Pictures of scenes beyond 25 feet will not appear to have as much depth as you might anticipate. In this picture taking situation, position a subject or object at least 10 feet from your camera and use the setting beyond 25 feet as your background.



SPECIFICATIONS

Camera lype:35mm, Automatic 3-Dimensional

Film Size/Type: 35mm Color Print ONLY

Film Speeds: ASA 100/DIN 21 ASA 400/DIN 27

Shutter: Automatic, Electronically Programmed Speeds from 1/30 to 1/500 Second

Lenses: Quadra Lens System: Four 30mm, f/5.6, Air Spaced Triplets, with Coated, High Index, Optical Glass Elements Pre-focused 6' (2m) to infinity

Flash Synchronization: Dedicated Hot Shoe Contact for Cordless Flash Connection to Nimslo Opti-Lite Elec tronic Flash (Other Types of Flash Units May Be Used)

Viewfinder: Bright Frame, Vertical Format

Information: Green LED sufficient light and battery OK condition; Red LED low light warning.

Film Advance: Single-Stroke Film Advance Lever

Exposure Counter: Automatic Reset4www.butkus.org

Film Rewind: Rewind Crank lifts clear from body

Exposure Control: CdS Cell measures light to program shutter speed and aperture size for best combi nation to achieve correctly exposed negatives

Power Source. Three (3) No.386 Eveready or Duracell, Silver Oxide Batteries. Equivalent batteries are: Maxell SR 43W, Panasonic WL11 and Ray-O-Vac RW24/44 4www.butkus.org

Other Features: Built-in Double Exposure Prevention

Dimensions: 5 3/8 x 2 7/8 x 1 5/8"

Weight: 12 ounces

Nimslo 35mm 3-Dimensional, Quadra Lens, Opti-Lite and the four suns visual are trademarks of Nimslo Corporation
