INTRODUCTION

KIEV Cameras have been produced since 1947 by the ARSENAL plant

(located in Kiev, Ukraine). They are exact copies of the prewar Ziess

"Contax" cameras. High reliability, ability to shoot in extremely low

temperatures (they can work even in severe Russian winters!), and

interchangeable lenses, are the characteristics which made these cameras

the choice for professional photography for more than 40 years.

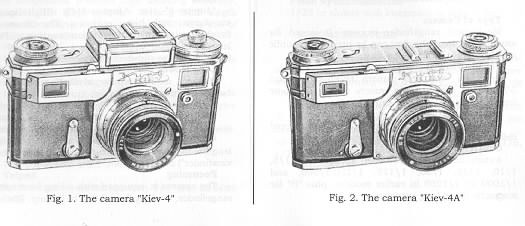

Kiev 4 camera

1. SPECIFICATIONS

Type of Camera
Mechanical range finder camera. Designed for amateur photography, but can be used for scientific and technical photography as well.

Picture Format

24 x 36 mm. The camera accepts standard 35mm film. Loading the camera with a 1.6 meter length of film will yield 36 exposures.

Shutter
The Kiev camera has an originally designed metal focal plane shutter with vertical traverse.

Shutter Speeds
Automatically timed shutter speeds 1/2, 1/5, 1/10, 1/25, 1/50, 1/125, 1/250,1/500, and 1/1000 (or 1/250 in earlier models), plus "B" for manually-timed long exposures.

Lens
"Jupiter-8" (or "Jupiter-8M"). High quality anastigmat with high resolution. The lenses are finished with an anti-reflection coating. Focal length = 50mm with maximum opening of 1:2. Supplied as the standard lens for the camera.

Lens Mount
Bayonet mount, similar to Contax range finder bayonet mount.

Viewfinder
Built-in optical viewfinder gives the field for the standard 50mm lens. Magnification, 0.8X lifesize.
When using other lenses of different focal lengths, the use of an auxiliary finder (i.e. Universal viewfinder") is necessary.

Focusing
The camera is equipped with a long base optical rangefinder, working from 0.9 m to infinity. The long base range finder high focusing accuracy, essential with large aperture or long focal length lenses. Focusing is also possible with the use of the distance scale.

Self-timer
Mechanically controlled, 9-15 second exposure delay.

Exposure Metering
Built-in selenium cell exposure meter (for Kiev-4 only). Reading angle is 65 to 70 degrees. Acceptable brightness range is 4 to 16000 cd/m2.

Kiev-4a do not have a built-in exposure meter. Film-speed indication only.

Filters
Threaded, 40.5 x 0.7 mm.

Tripod
3/8" threaded socket (modern 1/4" nut on later models)

Flash Synchronization
1/25 or slower with electronic or bulb flash.

2. NOMENCLATURE

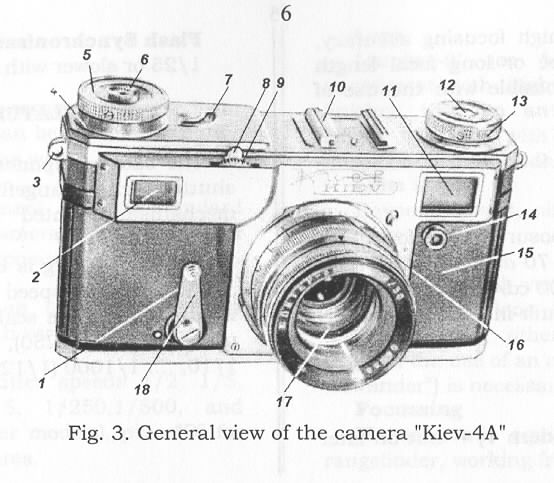

The basic components of the camera (fig. 3) are: shutter, lens, rangefinder, viewfinder, self-timer mechanism mounted on the body, and removable back cover.

Kiev 4 camera

Shutter winding is by turning the winding knob (5). The shutter speed scale (4) is engraved on the winding knob. The scale has numbers 2, 5, 10, .... up to 1000 (or 1/250), which stands for 1/2, 1/5, 1/10, .... 1/1000 (1/250) sec., respectively.

The shutter mechanism is linked to the film transport and frame counter mechanisms. By turning the winding knob (5), the shutter is simultaneously wound, with the frame advance and the of the disc counter moves up by one division. With this design, double exposures are prevented.

The shutter is released by the release button (6) or by activating the self timer release (1).

The shutter release button has a threaded hole to accommodate a shutter release cable.

Focusing of coinciding the second image from right window (2) and left window (11) into one, which is made possible by an optical compensator in the rangefinder mechanism.

The rangefinder mechanism is connected to the lens focusing mechanism, and thus, when the rangefinder images coincide, the lens is focused correctly. The compensator turns by rotating the gear wheel (9).

A distance scale is engraved on the lens focusing mount, graded from 0.9 to infinity (fig. 4). All numbers represent distances in meters.

The lens mount is locked (and consequently, the lens) by lever (8).

The depth-of-field scale (20) is engraved on the fixed portion of the lens focus mount. This scale shows the areas of sharpness depending on distance and chosen aperture.

Note: With the Kiev, distances are measured from the film plane.

Kiev 4 camera The rewind knob (13) is for rewinding exposed film back to its cassette.

The self-timer mechanism is located inside the camera body. It is started by the lever 13. Also shown in fig 3 are: 3- camera strap eyelet; 14 -flash PC cord outlet.

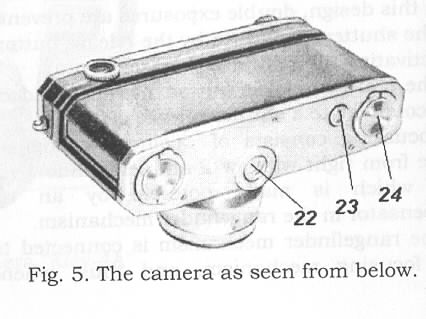

Kiev 4 camera On the bottom of the back cover are: tripod socket 22, lock keys 24 for locking the back cover, and film rewind button 23 (fig. 5).


2. BASIC OPERATIONS

2.1. Loading film

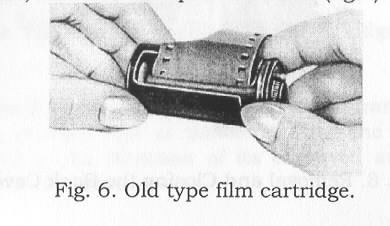

Kiev 4 camera Standard 35mm (135 type) film cartridges or special old type cartridges (fig 6) can be used. Before loading, the camera should be taken from its case. Unscrew the locking screw found on the bottom of the case, fastened to tripod socket 22 (fig.5).

Kiev 4 camera

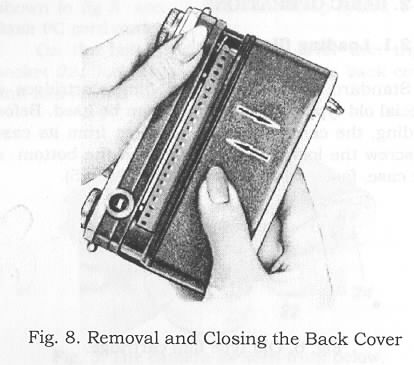

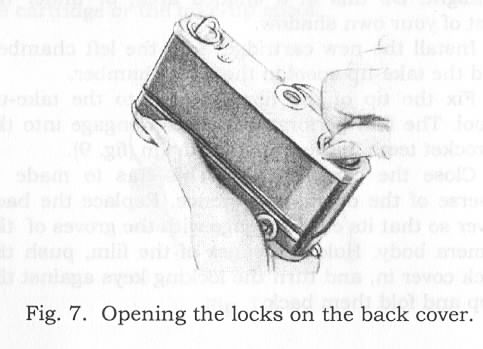

To open the camera and remove the cartridge, turn the camera bottom up and pull out the lock keys ( 24) and twist them (fig. 5) by half a turn against the stop as shown in fig. 7.

Note: Don't open the camera back with the camera lens side up to avoid spilling the film cartridge and take-up spools.


Avoid loading or unloading film in bright sunlight. Do this in a shaded area, or under the cast of your own shadow.

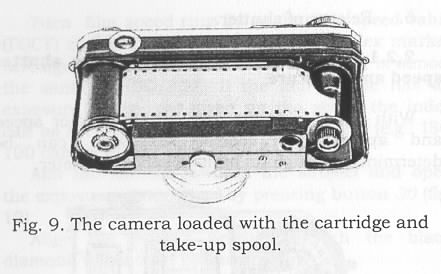

Install the new cartridge into the left chamber, and the take-up spool in the right chamber.

Fix the tip of the film leader into the take-up spool. The film perforations should engage into the sprocket teeth of the transport drum (fig. 9).
Kiev 4 camera



Kiev 4 camera Close the camera back. This has to made in reverse of the opening sequence. Replace the back cover so that its edges engage with the groves of the camera body. Hold the edges of the film, push the back cover in, and turn the locking keys against the stop and fold them back.


Kiev 4 camera Make 2 blank exposures (the first two frames are on the exposed end of the film). Turn the rewind knob (13) to the direction of its engraved arrow to make the film taut..
Kiev 4 camera If the camera is loaded properly, turning the advance knob 5 will cause the rewind knob 13 to turn in the direction opposite its engraved arrow. A stationary rewind knob will indicate either an improperly loaded film or a loosely wound film in the cartridge or the take-up spool


Finish the loading process by setting the frame counter disk to "0" by turning its movable part (fig. 10).

Note: An empty film cartridge (old type) can be used as a take-up spool.

2.2. Basic shooting

The process of shooting consists of the following operations:

1. Determination of appropriate aperture and shutter speed;

1. Shutter winding;
2. Selection of shutter speed;
3. Selection of aperture;
4. Focusing;
5. Composing;
6. Release of shutter.

2.2.1. Determination of appropriate abutter speed and aperture

Kiev 4 camera With the Kiev-4, the appropriate shutter speed and aperture for correct exposure can be determined through its built-in exposure meter.

Turn film speed ring 26 so that the speed value (ASA) of the film in use aligns with index marker (27, figure 11). The (ASA) Soviet standard is almost the same as ISO/ASA. If the film in use has an exposure index not given on the scale, the index can be set between two specified numbers (e.g., ISO 100 can be set between ASA 65 and 130).

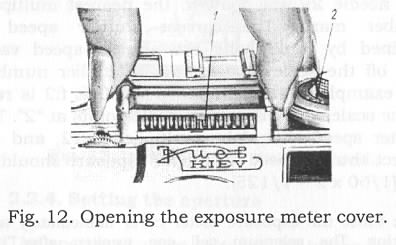

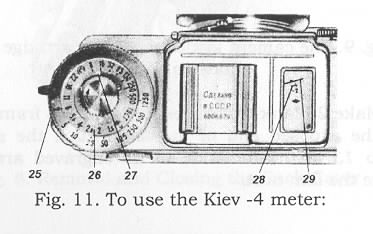

Aim the camera towards the subject and open the exposure meter cover by pressing button 30 (fig. 12).

Align the meter's needle 29 with the black diamond mark 9 * by turning ring 25.

From the shutter speed ring 25 and aperture ring 26, choose a shutter speed/aperture combination appropriate for the exposure.

Kiev 4 camera

Note: Red numbers on ring 36 indicate exposure time in FULL SECONDS, and black numbers, fractions of seconds.

On the exposure meter scale 28 are the multiplier numbers 2 and 4 "EXPOSURE FACTOR NUMBERS". These should be used if the needle (29) is not able to reach the index * even after a complete turn of ring 25 (in low light shooting situations). The ring (25) should then be turned so that needle 29 will point to the nearest multiplier number mark. The correct shutter speed is obtained by multiplying the shutter speed value read off the scale 36 with the multiplier number. (For example: A combination of 1/60 @ f:2 is read off the scale, and the meter needle points at "2" The shutter speed should be multiplied by 2, and the correct shutter speed for proper exposure should be 1/30 (1/60 second + 1/60 second = 1/30 second)].

Note: Close the exposure meter cover immediately after metering. The selenium cell can weaken after long exposures to bright light] Do not subject the meter to shock.

For the meterless Kiev-4a, appropriate exposures can be determined by several methods: The best way is through a separate exposure meter. Exposure calculators or tables (as found in film boxes) can also be used. Visual judgement based on one's photographic experience is also useful.

2.2.2. Winding shutter
Turn the advance knob 5 clockwise (fig. 3)

2.2.3. Selecting shutter speed

Kiev 4 camera Shutter speed selection is done through the knob 6 as follows:
Raise the knob 6 by the edges (fig. 13), and turn it so that the black dot on it points to the number of the chosen shutter speed, and lower the knob back.
The advance knob should be turned clockwise before changing shutter speeds. In this state, the shutter speed can be set more correctly. The shutter speed can be set with the shutter either wound or fired. However, it is recommended that the shutter speed be changed with the shutter wound.

If an exposure longer than 1/2 second is necessary, the knob's black point should be set against "B". The shutter will remain open as long as the shutter button is pressed, and will close only upon release. With very long exposures, the shutter button can be kept down by turning it counter clockwise. Turning back the button (red dot on the shutter and knob will align) releases it and closes the shutter.

2.2.4. Setting the aperture

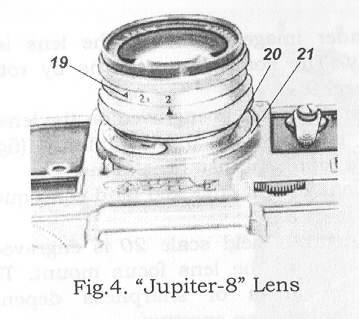

The aperture can be selected by turning ring 19 (fig. 4) and aligning the chosen aperture number against the index mark. The setting should be done before focusing the lens.

2.2.5. Focusing

Kiev 4 camera

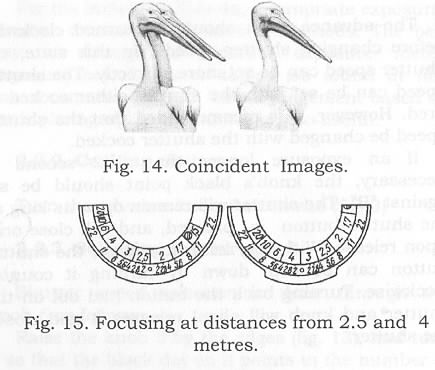

Adjusting the rangefinder image and focusing are made simultaneously by turning the movable part of the gear focus wheel (fig. 3)

It is recommended (especially when shooting at short distances) to coincide the two images seen through the range finder window, on the center of the focus field patch, rather than the edges. It will ensure more precise focusing.

In situations when the use of the range finder is impractical (e.g., fast-moving objects, objects without sharp contours, or dim light shooting), focusing can be done by using the distance scale.

Shooting without the rangefinder (visual estimation of distances) can be done successfully only at small apertures, i.e., when focus errors are compensated by depth of field.

2.2.6. Composing

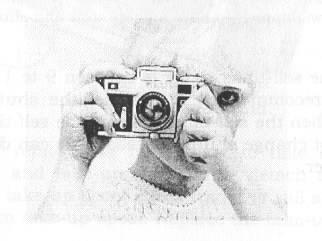

Composing the image with a 50mm lens is done through the built-in viewfinder. The limits of the field of view as what would be on the film is seen through the eyepiece.

The universal viewfinder (or other accessory viewfinders) has to be used with lenses of other focal lengths.

2.2.7. Shutter release

Kiev 4 camera

The shutter is fired by pressing the shutter release button (6) (fig.3).

It is necessary to press the button smoothly and gently, so as not to jerk the camera during exposure.




Using the Self-timer

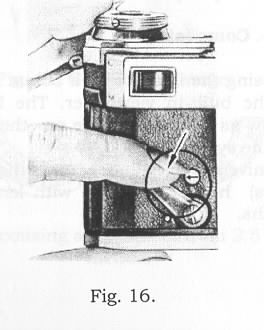

Turn the lever (18) (fig. 3) counter clockwise against the stop (fig. 16).
Note: Do not, by any means, turn the self-timer lever further than the pin. When turning, do not press it against the camera body to prevent deformation of the lever and block the pin. When twisted to the left, the self timer will appear to have a short start and shutter will not fire.

The self-timer delay is between 9 to 15 seconds. It is recommended to first set the shutter speed, and then the self-timer. During the self-timer's run, do not change shutter speeds. This can damage the shutter.
Kiev 4 camera


To prevent blurred pictures, the camera must be used with a tripod (or any suitable support) and a cable release for exposures longer than 1/25 sec.


2.3. Rewinding film

Kiev 4 camera

When the frame counter reads "36", it means that the film has reached its end. Stop further shooting and unload the camera (for cartridge to cartridge film loading).

Note: With film lengths shorter than 1.6 meters the film end is indicated by an increased resistance in winding with the winding knob 8 (fig. 1)

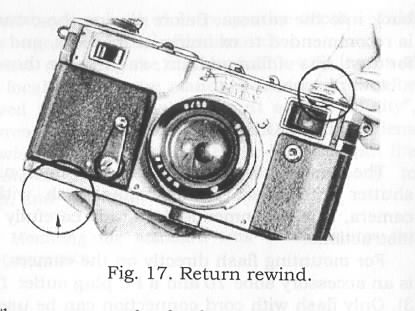

Hold the camera with the left hand, cap the lens, press the film rewind button all the way in with the left index finger, and turn the rewind knob 13 (fig. 13) to the direction of its engraved arrow (fig. 17).

Turn the rewind knob until a slight resistance is felt, and finally gone, indicating that the film has been pulled back in to its cartridge.

Then, remove the back cover to take out the cartridge and take-up spool, and detach the film from the take-up spool if film leader is still attached to the film take-up spool. Replace the take-up spool back into the camera. Before closing the camera, it is recommended to examine its interiors, and check for dust, bits of film and dirt, and remove these with a blower brush.

4. FLASH PHOTOGRAPHY
The camera has a mechanism to synchronies its shutter with flash. Before using flash with the camera, it is recommended to study carefully these instructions.

For mounting flash directly on the camera, there is an accessory shoe 10 and a PC plug outlet 14 (fig. 3). Only flash with cord connection can be used (for flash with shoe contacts, a special adapter for "hot shoe" to PC cord connector is available).

Flash exposures should only be done at shutter speeds from 1/25 to 1/2 second. The contacts of the synchronization circuit are closed with a- fired shutter (connected), and when the shutter is wound, the circuit is open "off" It is important to turn the flash on (if connected to the camera) only AFTER winding the camera, or the flash will fire spontaneously. Wind the shutter immediately or turn off the flash after shooting.

Note: Connect the flash only with the flash switched-off, or a wound shutter.


5. INTERCHANGEABLE LENSES

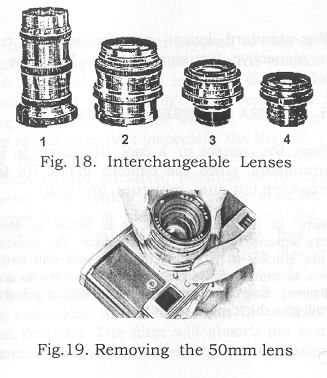

The camera is designed to take in other lenses with [Kiev] bayonet mounts ( lens specifications are given in the table). The standard lens supplied with the camera is "Jupiter-8", F=50mm, 1:2, but may be replaced with "Jupiter-3", F=50mm 1:1.5, or "Helios-103", F=50mm, 1:1.8. These standard lenses are mounted on the internal ring of the focusing mechanism. All the other lenses mount on the external bayonet, with their respective depth of field scales engraved on their fixed barrels.

When replacing the standard lens with lenses of other focal lengths, the standard lens must first be removed with the focusing mount set at "infinity", and press the spring fastener (fig. 19). Turn the lens clockwise until the red ledge below it aligns with the red dots on the focus mount and camera body to loosen, and pull out.

Note: Mounting the standard lens back requires the reverse sequence.

Kiev 4 camera

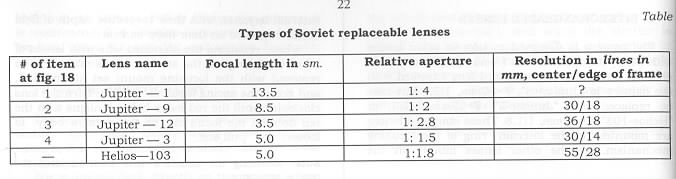

Each lens, except the "Jupiter-3 and and has its own focusing mechanism, distance, and depth of field scales. All lenses focus through the aid of the camera's rangefinder.

Before mounting a lens, remove its rear cap. Both the camera's focusing mount and the lens have to be set at infinity. Put the lens on the bayonet so that the red dot on the lens barrel and the red dot on the camera body coincide. Push in lens and turn counter clockwise until the latch engages and the locks the lens.

Kiev 4 camera

Lens is mounted correctly if focusing wheel 9 (fig. 3) turns when lens is turned for focusing.

The lens is removed in a reverse sequence. Set the lens to infinity first, press the lens lock release found near the lens barrel's mount, and turn lens counter clockwise until it disengages with the camera body.

With lenses other than the standard 50mm, the shot should be composed through the aid of the universal or an auxiliary finder. The finder can be mounted on the accessory shoe (fig. 20).


Non-standard lenses are focused by turning their respective focusing barrels, NOT the focus wheel (9) (fig. 3)

6. CAMERA & LENSES CARE TIPS
Store the camera in a cool, dry place. In humid environments, store the camera inside its leather case to keep out dust, moisture, and salt.

Note: In tropical climates, it is better to store the camera separately from its leather case. The leather case moulds quickly in tropical climates, and will cause the camera to mould as well. Storing the camera in a sealed vinyl plastic bag with some dessicants (Silica gel, dry rice, etc) will give the it more protection.

If the camera had been exposed to rain or mist, or after shooting near the sea, wipe the camera with a soft, clean cloth. Don't leave the camera in an excessively hot place. Don't apply excessive force during operation. Do not subject the camera to strong shock or impact (especially the Kiev-4).

As mentioned earlier, the lenses have antireflection coated surfaces. Because of its extreme thinness, this coating can be easily abraded with improper wiping or cleaning. To protect the antireflection coatings, the lens surface has to be protected from contamination so that cleaning is less often. Attaching a colourless "skylight" 1A or UV filter on the lens can give it ample protection. Being colourless, these filters can be permanently left on the lens. The filter will absorb the brunt of contamination, and are easier to clean. Easier and cheaper to replace too, if damaged. Protect the lens from, and do not store it in, a damp environment. Dampness can cause spotting and lens mold, which damage the coating.

Bubbles may be found in complex Soviet and foreign lenses. The process by which the optical glass found in these lenses is made inevitably causes bubbles to form The bubbles which may be found are very small in size and quantity, and are within acceptable specifications. They are not considered as defects and will not affect the quality of images.

If the camera is brought from a cold environment into a warmer one, let it warm first in its case and stabilize to ambient temperatures to prevent moisture condensation.


If the camera malfunctions, take it to an authorized service center for repair. Do not attempt to do your own repairs at home.



TRANSLATED BYANDREY OSTAPENKO FROM ORIGINAL MANUFACTURER'S

MANUALS.

THANKS TO JAY Y. JAWER (PHILIPPINES) FOR IN TRANSLATING.

A A. OCTAITEHKO 2002 r.
